V-Shaped Alley Manure Scraper

Published: 2026-09-27 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name V-Shaped Alley Manure Scraper
Product Image
V-shaped alley manure scraper with angled steel arms

Reference image; final design and supplied components are subject to order confirmation.
Product Overview The V-Shaped Alley Manure Scraper is an alley-cleaning component for livestock buildings with a compatible solid-floor manure removal system. As the scraper travels along the alley, its angled arms gather manure and move it toward a designated cross gutter or collection point. The arrangement is especially relevant to cattle free-stall barns and can be evaluated for suitable solid-floor service alleys in commercial pig farm projects.
Key Features
  • Angled scraping arms collect manure across the alley during the cleaning stroke.
  • Scraper width can be matched to the measured alley and its side clearances.
  • Replaceable steel or flexible blade options can be selected for the floor surface and wear conditions.
  • A compatible chain or cable drive can support scheduled cleaning cycles.
  • Guidance components can be planned around a floor-mounted or recessed drive path.
Structural Components A typical scraper assembly includes a V-shaped steel frame, two angled arms, floor-contact blades or wear strips, a central draw bar or connection point, and mounting hardware. The complete alley-cleaning system also requires a compatible drive unit, pulling chain or cable, guidance components, controls, and a properly located manure collection point. These system components should be specified together for the project.
Working Principle The drive system pulls the scraper through the livestock alley. Its angled blades contact the floor and advance accumulated manure toward a cross gutter or other designed discharge point. The return movement and blade action depend on the selected scraper and drive configuration. A bidirectional layout requires its own compatible collection-point design; it should be confirmed during barn planning rather than assumed for every installation.
Technical Specifications
  • Scraper configuration: V-shaped alley scraper
  • Suitable alley width: According to project requirements
  • Blade material: Steel or flexible wear material, subject to floor compatibility
  • Drive and guidance: Available upon request as part of a matched system
  • Frame material and corrosion protection: Customizable
  • Stroke length, operating schedule, and power requirements: To be confirmed from the complete system design
Applications Intended for manure removal in cattle free-stall alleys and other compatible solid-floor livestock passages. For pig farm construction, the scraper can be assessed for suitable service or animal alleys after checking floor type, animal movement, pen access, and manure discharge arrangements. In steel structure livestock buildings, its travel path and drive equipment can be coordinated with concrete floor construction, columns, doorways, and cross gutters.
Customization Options Scraper width, blade material, wear parts, draw-bar arrangement, frame protection, and drive compatibility can be specified according to project requirements. Selection should consider alley length and width, concrete or rubber flooring, bedding content, manure consistency, collection-point position, and local climate and farm conditions.
Installation & Maintenance Installation begins with a survey of alley dimensions, floor condition, slope, drive route, and discharge location. Fit and align the scraper with the specified pulling and guidance system, then check travel and clearances before commissioning. During operation, inspect blade wear, fasteners, chain or cable condition, guide components, and drive protection. Adjust or replace wear parts as required by the selected system manual.
Product FAQ

Is the scraper suitable for every pig house?
No. Suitability depends on the alley floor, animal access, manure collection route, and the complete drive-system design.

Can the blades be selected for different floors?
Yes. Blade and wear-strip options should be matched to concrete, rubber, or other specified flooring.

What drawings are needed for a proposal?
Provide the barn plan, alley cross-section, floor details, collection-point layout, and proposed drive location.
Product Gallery
V-shaped manure scraper installed in a livestock alley

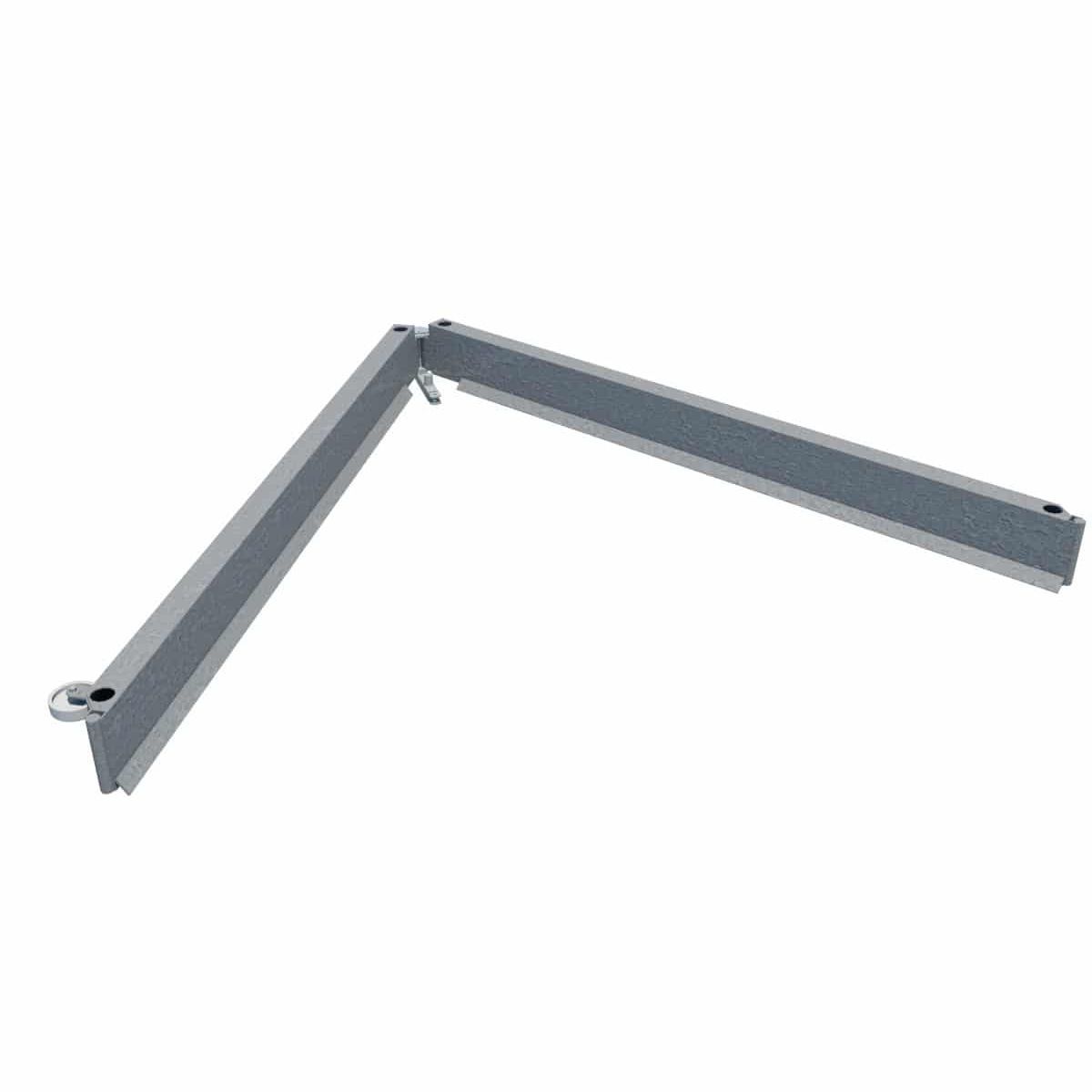

V-shaped steel manure scraper assembly
