Hoof Trimming Disc Inserts

Content

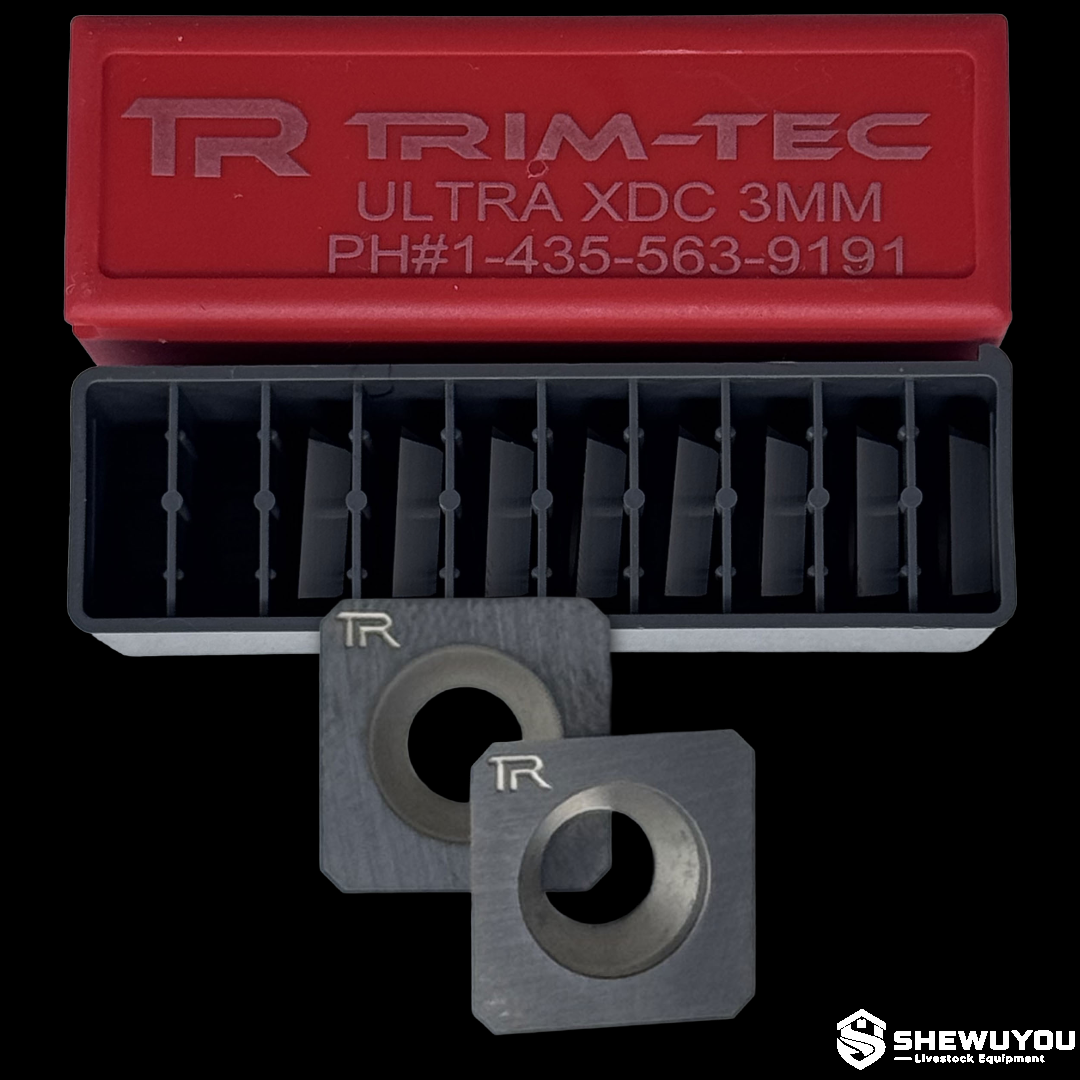

Hoof Trimming Disc Inserts are replaceable cutting components designed for professional hoof trimming discs and wheels. The insert forms the working cutting edge of the wheel, allowing worn cutting surfaces to be indexed, replaced, or maintained without replacing the complete wheel assembly.

The compact replaceable design is well suited to professional livestock hoof-care operations, mobile hoof-trimming services, breeding farms, dairy operations, and agricultural equipment distributors. Insert specifications should always be matched to the trimming wheel, pocket geometry, fastening system, and intended animal application.

• Carbide cutting material available for demanding hoof-trimming applications.
• Replaceable insert construction helps reduce the need to replace the complete trimming disc.
• Indexable cutting edges can help extend usable cutting life when the insert design permits repositioning.
• Designed for consistent cutting performance and controlled material removal.
• Suitable for professional and high-frequency livestock hoof-care workflows.
• Compatible configurations can be specified according to the selected trimming wheel or disc.
• Bulk packaging and private-label supply are available upon request for distributors and agricultural projects.

A typical hoof trimming insert assembly consists of:

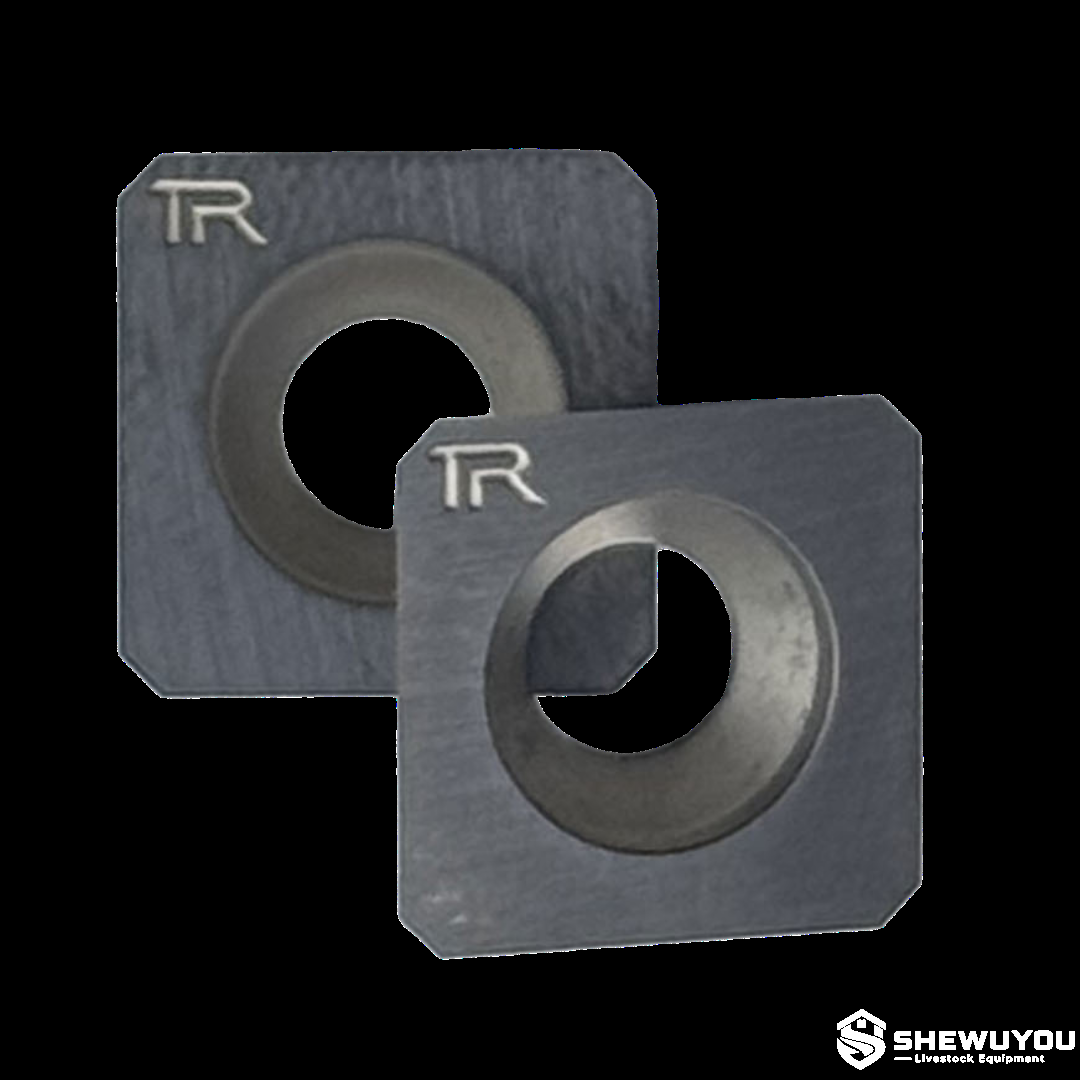

• Carbide insert: the primary replaceable cutting element.
• Mounting hole: positioned according to the corresponding wheel pocket and fastening arrangement.
• Cutting edge: engineered for efficient removal and shaping of hoof horn.
• Retaining screw: used with compatible wheel designs to secure the insert in its pocket.

Exact geometry, edge profile, hole size, thickness, and fastening details are customizable according to the trimming wheel design.

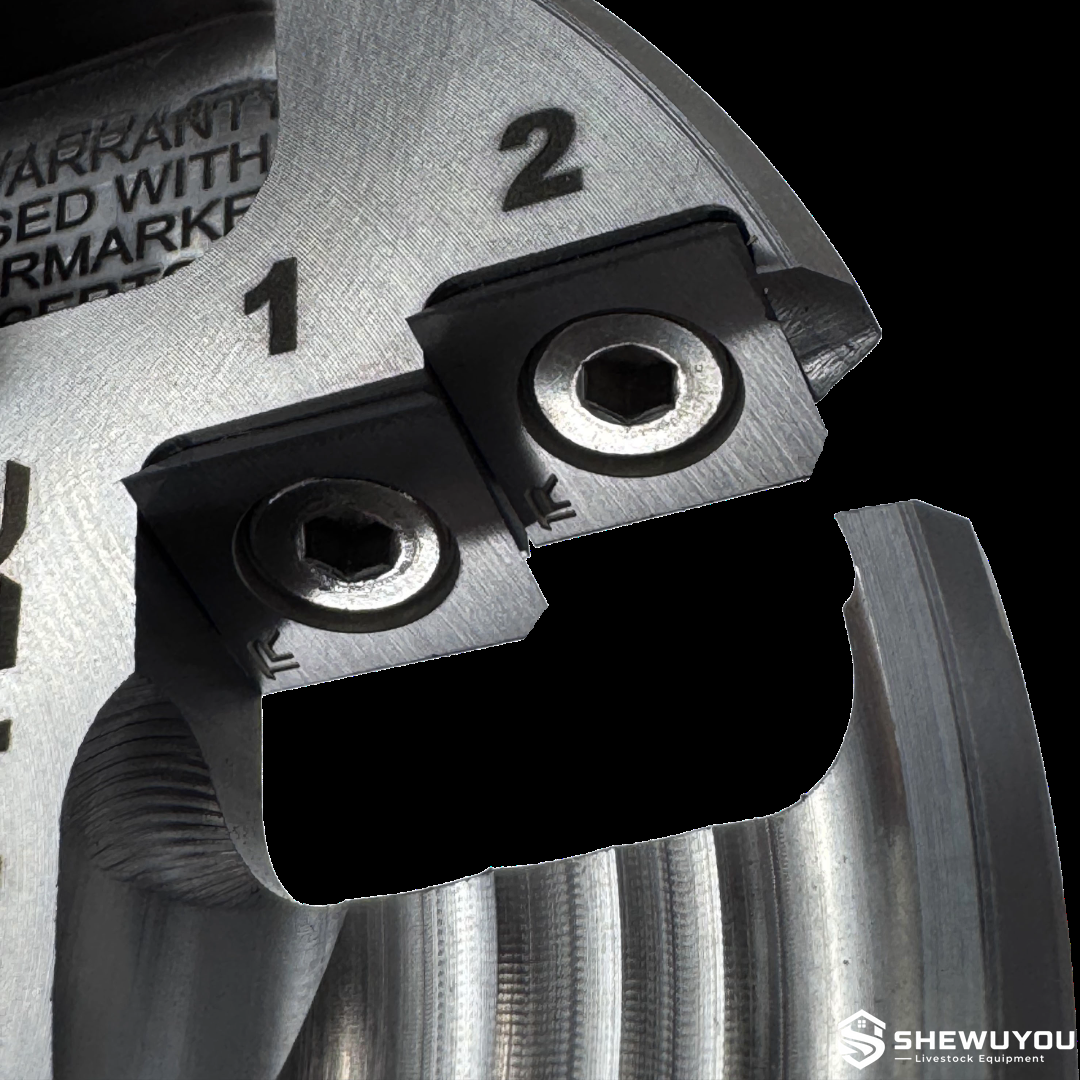

The insert is seated securely in a precision-machined pocket on the trimming disc or wheel. During operation, the rotating wheel transfers cutting force through the insert edge to remove excess hoof horn and shape the hoof surface.

When the active edge becomes worn, an indexable insert may be repositioned to present a fresh cutting edge where the design allows. Severely worn, damaged, loose, or improperly seated inserts should be replaced before further operation.

• Professional cattle hoof trimming and preventive hoof-care programs.
• Dairy farms, breeding operations, livestock production groups, and mobile hoof-trimming services.
• Replacement-parts programs for agricultural equipment distributors and dealers.
• Livestock equipment procurement packages for farm engineering and agricultural projects.
• Suitable for inclusion in spare-parts inventories for commercial livestock facilities.
• For pig farm projects, compatibility should be confirmed with the selected pig hoof-trimming equipment and disc system before ordering.

For OEM, distributor, and engineering-project requirements, insert configurations can be developed according to the mating hoof trimming wheel.

• Insert thickness and overall dimensions: Customizable
• Cutting-edge profile: According to project requirements
• Mounting-hole geometry: According to compatible wheel design
• Material and grade selection: Available upon request

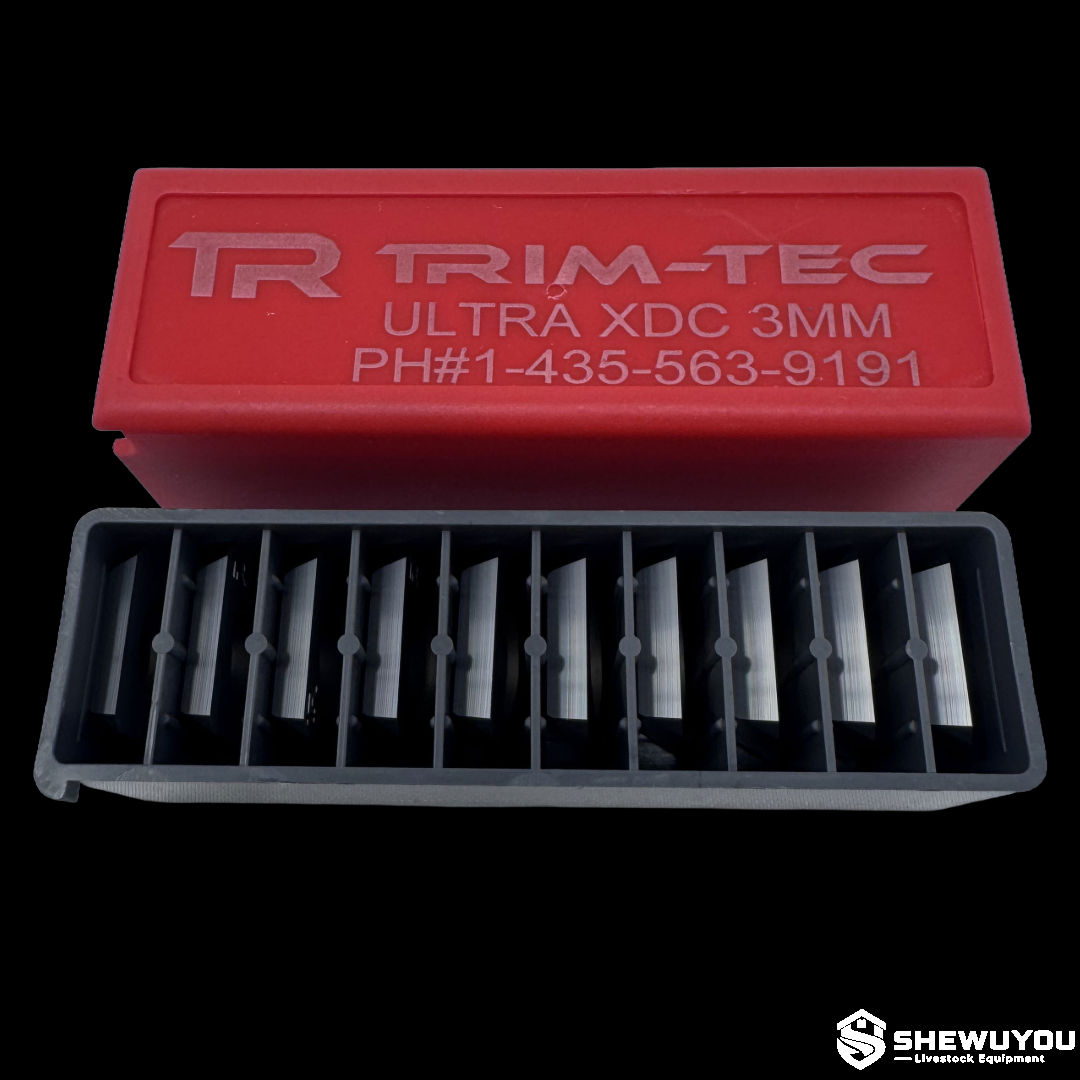

• Packaging quantity and labeling: Customizable
• Private-label and OEM supply: Available upon request

1. Disconnect and secure the power tool before servicing the trimming wheel.
2. Remove the retaining screw and worn insert using the correct tool.
3. Clean the insert pocket and contact surfaces before fitting the replacement.
4. Position the new insert correctly in the pocket and tighten the compatible fastener securely according to the wheel manufacturer's specification.
5. Inspect insert seating, screw condition, wheel body, and cutting-edge condition before operation.
6. Rotate or index the insert only when the insert design permits this procedure.
7. Regular inspection is recommended in high-volume livestock operations, especially where sand, stones, bedding residue, or other abrasive contaminants may be present.

Q1: What are hoof trimming disc inserts used for?
They provide the replaceable cutting edge installed in compatible hoof trimming discs or wheels for professional hoof maintenance and shaping.

Q2: Are the inserts compatible with every hoof trimming disc?
No. Compatibility depends on insert dimensions, pocket geometry, fastening method, and wheel design. A drawing, sample, or wheel specification can be used for matching.

Q3: What insert thicknesses are available?
2 mm and 3 mm configurations are commonly used in professional hoof-trimming systems. Other dimensions are available according to project requirements.

Q4: Can the insert be rotated after it becomes dull?
Indexing or rotation is possible only for designs with multiple usable cutting edges. The correct procedure depends on the insert geometry and matching wheel.

Q5: How long does one insert last?
Service life varies substantially with hoof hardness, sand and rock exposure, workload, trimming technique, and maintenance. Actual performance should be evaluated under local farm conditions.

Q6: Can SHEWUYOU supply customized inserts for distributors?
Yes. Custom dimensions, material specifications, packaging, labeling, and OEM supply can be arranged according to local market and equipment requirements.
