Automatic H-Type Broiler Cage System

Published: 2026-09-04 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Automatic H-Type Broiler Cage System
Product Image

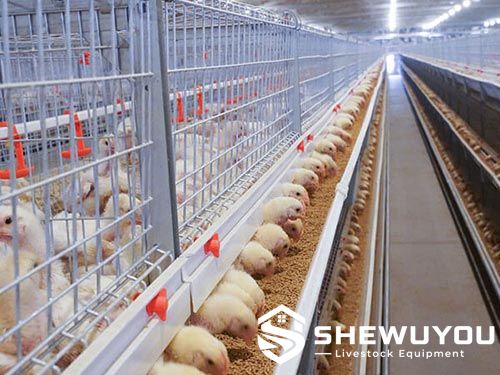

Automatic H-type broiler cage system for commercial poultry farms
Product Overview The Automatic H-Type Broiler Cage System is designed for intensive commercial broiler production where efficient space utilization, controlled feeding and simplified daily management are important. The vertically stacked H-type structure makes better use of poultry-house volume while maintaining organized access for feeding, drinking and flock management. The system can be integrated with automatic feeding, nipple drinking, manure removal and environmental-control equipment. Its modular configuration is suitable for new poultry farm construction, steel structure poultry houses, farm expansion and modernization projects.
Key Features
  • H-type multi-tier structure maximizes usable poultry-house space.
  • Hot-dip galvanized steel components provide corrosion resistance for demanding livestock environments.
  • Automatic feeding equipment supports consistent feed distribution and reduces manual handling.
  • Nipple drinking lines provide controlled water delivery throughout the cage rows.
  • Manure removal equipment can be integrated to simplify waste handling and improve house hygiene.
  • Modular construction allows convenient transportation, installation and component replacement.
  • Suitable for integration with ventilation, cooling and environmental-control systems.
  • Designed for intensive broiler production and large-scale poultry farm projects.
  • Configuration can be adapted to different poultry-house dimensions and automation requirements.
Structural Components A complete system may be configured with the following main components:
  • Galvanized steel cage frames and vertical support structures
  • Galvanized wire mesh panels, partitions and cage doors
  • Broiler cage floors and supporting brackets
  • Automatic feed lines and feed troughs or pan feeding equipment
  • Nipple drinking lines with water pipes and pressure-control components
  • Manure belts or other compatible manure removal equipment
  • Drive units, transmission components and manure discharge equipment
  • Walkways, service passages, connectors and fixing hardware
  • Optional environmental-control equipment for closed poultry houses
The final equipment configuration is customizable according to project requirements.
Working Principle / Structural Principle The H-type system arranges broiler cages vertically in multiple tiers, allowing more birds to be managed within the available building footprint. Feed is delivered through the automatic feeding line, while nipple drinkers provide water along each cage row. Bird manure falls through the cage floor and is collected by the manure-management system installed beneath the cage tiers. Where automatic manure removal is selected, manure belts transport waste toward the designated discharge point, reducing manual cleaning requirements. The cage system can operate as part of an integrated poultry-house solution together with ventilation, cooling, lighting and climate-control equipment.
Technical Specifications
System Type H-type automatic broiler cage system
Tier Configuration Customizable according to poultry-house height and production requirements
Main Material Galvanized steel and steel wire components
Surface Treatment Hot-dip galvanized treatment available
Feeding System Automatic feeding system; configuration available upon request
Drinking System Automatic nipple drinking system; customizable
Manure Management Automatic manure removal equipment available according to project requirements
Cage Capacity According to selected cage dimensions, tier arrangement and broiler production requirements
Installation Modular on-site assembly, alignment and commissioning

Final technical specifications are confirmed according to the selected system configuration, poultry-house dimensions and local farm conditions.
Applications
  • Commercial broiler chicken farms
  • Large-scale intensive poultry production projects
  • Closed and mechanically ventilated poultry houses
  • Steel structure poultry-house construction
  • New farm development and poultry-house expansion
  • Existing farm modernization and automation upgrades
  • Integrated poultry equipment and EPC projects
  • Farm equipment distributors and agricultural project contractors
Customization Options The system can be engineered around the customer's building layout, target flock size and required automation level. Customizable options include:
  • Cage dimensions and compartment arrangement
  • Number of cage tiers
  • Cage-row quantity and house layout
  • Automatic feeding configuration
  • Nipple drinking-line arrangement
  • Manure belt and waste-transfer configuration
  • Service aisles and maintenance access
  • Integration with ventilation and climate-control systems
Solutions are designed according to local climate, poultry-house structure, farm conditions and project requirements.
Installation & Maintenance Before installation, the poultry-house floor, dimensions, service aisles and equipment locations should be confirmed. Cage frames are assembled and accurately levelled before feeding, drinking and manure-management equipment is connected. During commissioning, check cage alignment, structural fasteners, feed-line operation, water pressure, nipple drinkers, drive units and manure belts. Routine maintenance should include cleaning and disinfection, inspection of structural connections, checking moving components and flushing drinking lines. The modular design makes individual components easier to inspect, replace and maintain during the service life of the poultry-house equipment.
Product FAQ

Q: What is an H-type broiler cage system?
A: It is a vertically stacked poultry housing system designed for intensive broiler production, with optional automatic feeding, drinking and manure-management equipment.

Q: Can the system be fully automated?
A: Yes. Automatic feeding, nipple drinking, manure removal and environmental-control equipment can be integrated according to project requirements.

Q: Can the cage system be customized?
A: Yes. Cage dimensions, tier configuration, row layout and supporting automation equipment can be designed according to the poultry-house layout and production target.

Q: Is it suitable for steel structure poultry houses?
A: Yes. The cage layout can be coordinated with the dimensions and structural conditions of a steel structure poultry building.

Q: What information is required for a project quotation?
A: Useful information includes poultry-house length, width and height, target bird capacity, preferred automation level and local climate or farm conditions.
Product Gallery

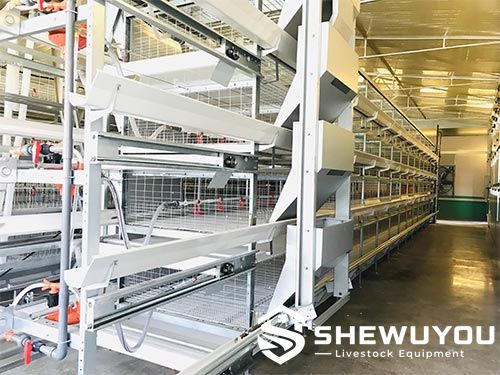

H-type broiler cage system inside commercial poultry house

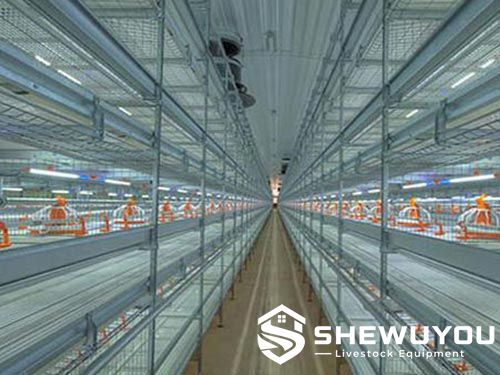

multi-tier automatic broiler cage equipment

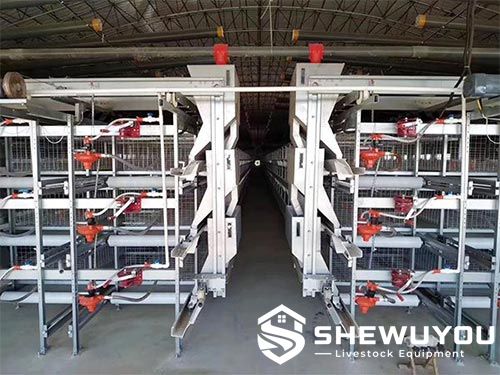

automatic H-type broiler cage installation
