Product Name	Bolus and Rumen Magnet Applicator
Product Image
Product Overview	Bolus and Rumen Magnet Applicator is a professional cattle dosing instrument designed for clean and controlled oral administration of mineral boluses, nutritional boluses, treatment boluses, and compatible rumen magnets. The stainless-steel applicator combines a curved insertion tube, rounded front edges, an ergonomic handle, and a spring-assisted operating mechanism. These features support convenient one-handed use while helping guide the bolus or magnet through the animal's mouth and toward the swallowing position. :contentReference[oaicite:0]{index=0}
Key Features	• Designed for oral administration of cattle boluses and compatible rumen magnets. • Stainless-steel construction provides good strength, corrosion resistance, and durability. • Curved applicator shape assists positioning during oral administration. • Rounded front edges are designed to reduce unnecessary irritation during correct use. • Ergonomic handle with return spring supports convenient one-handed operation. • Internal retaining spring helps hold compatible boluses securely before release. • Different lengths are available for young cattle and mature cattle. • Single-bolus and multi-bolus configurations are available according to project requirements. :contentReference[oaicite:1]{index=1}
Structural Components	The applicator typically consists of a stainless-steel insertion tube, bolus or magnet retaining sleeve, internal retaining spring, push rod, ergonomic operating handle, and return spring. The sleeve holds the bolus or rumen magnet before administration, while the push rod transfers manual handle movement to the loaded product for controlled release.

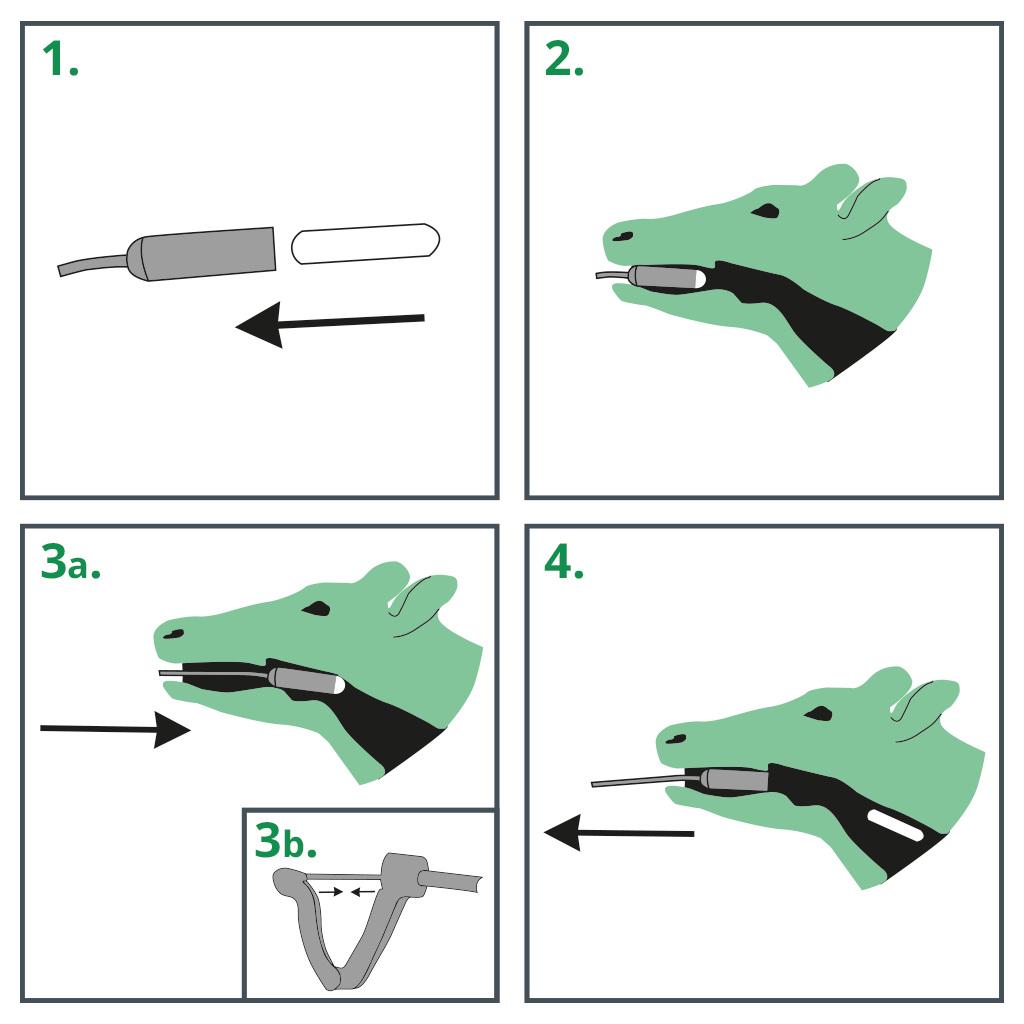

Working Principle / Structural Principle	A compatible bolus or rumen magnet is placed inside the applicator sleeve and retained by the internal spring. The operator carefully introduces the curved tube into the animal's mouth and positions it according to professional cattle-handling practice. Activating the handle advances the push rod and releases the bolus or magnet from the sleeve. The return spring then resets the operating mechanism for the next administration. Proper restraint and trained operation are recommended for safe use.
Technical Specifications	Product Type: Bolus and Rumen Magnet Applicator Application: Oral administration of cattle boluses and rumen magnets Material: Stainless steel Operation: Manual, spring-assisted Handle: Ergonomic one-handed design Available Overall Lengths: Approximately 53 cm and 70 cm configurations Compatible Bolus Diameter: Approximately 2.7-3.5 cm for referenced configurations Internal Sleeve Diameter: Approximately 3.5-3.6 cm depending on configuration Suitable Animals: Young cattle, small cattle, and mature cattle according to applicator size Special Configuration: Dual-bolus administration model available Other Specifications: Available upon request
Applications	Bolus and Rumen Magnet Applicator is suitable for dairy farms, beef cattle farms, breeding centers, veterinary practices, livestock health programs, and commercial cattle operations. Typical applications include administration of mineral supplementation boluses, nutritional boluses, veterinary boluses, and cage-style rumen magnets used in cattle management programs. :contentReference[oaicite:2]{index=2}
Customization Options	SHEWUYOU can provide different applicator lengths, sleeve dimensions, bolus capacities, handle configurations, packaging methods, and purchasing quantities according to project requirements. OEM and bulk supply solutions are available for livestock equipment distributors, cattle farms, veterinary suppliers, breeding groups, and agricultural project purchasers.
Installation & Maintenance	No fixed installation is required. Before use, inspect the insertion tube, retaining sleeve, push rod, handle, and return spring for smooth operation and signs of damage. After each use, remove residue from the applicator, clean all accessible surfaces, dry thoroughly, and store in a clean environment. Regular inspection of the spring and moving components helps maintain reliable operation.
Project Cases	Suitable for commercial dairy farms, beef cattle operations, calf-rearing facilities, cattle breeding centers, veterinary service organizations, livestock cooperatives, and agricultural projects requiring routine bolus or rumen magnet administration.
Product FAQ	Q: What can this applicator administer? A: It is designed for compatible cattle boluses and cage-style rumen magnets. Q: Can it be operated with one hand? A: Yes. Referenced designs use an ergonomic handle and return spring to support one-handed administration. :contentReference[oaicite:3]{index=3} Q: Are different lengths available? A: Yes. Referenced configurations include approximately 53 cm and 70 cm overall lengths for different cattle sizes. :contentReference[oaicite:4]{index=4} Q: What bolus sizes can be used? A: The referenced applicator design is suitable for boluses approximately 2.7-3.5 cm in diameter, depending on the selected configuration. :contentReference[oaicite:5]{index=5} Q: Is a two-bolus model available? A: Yes. A configuration designed for administering two compatible boluses in one operation is available. :contentReference[oaicite:6]{index=6}
Product Gallery
