Poultry Weighing Equipment
Popular

Connected Automatic Poultry Weighing System

Published: 2026-09-28 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Connected Automatic Poultry Weighing System
Product Image connected automatic poultry weighing system
Product Overview The Connected Automatic Poultry Weighing System collects bird weight measurements during routine flock activity and makes the resulting data available for growth monitoring. It can be configured for commercial broiler and breeder houses where farm managers need consistent weight records across houses or production sites. The weighing arrangement, communication method and reporting interface are selected according to project requirements.
Key Features
  • Automatic collection of bird weight data with less routine manual handling.
  • Growth trends and weight distribution data to support flock management decisions.
  • Connected data transfer and farm management integration options, subject to the selected controller and software interface.
  • Weighing positions can be planned around poultry house layout and flock movement.
  • Serviceable components and accessible mounting positions support routine inspection and cleaning.
Structural Components A typical configuration includes a bird weighing platform or perch, load cell, support or suspension assembly, weighing controller, power supply, communication components and protected signal cabling. The final bill of materials depends on the poultry species, house arrangement and data connection specified for the project.
Working Principle / Structural Principle When a bird stands on the platform or perch, the load cell sends a measurement to the controller. The system processes valid readings into flock weight records and growth statistics. Where a compatible communication module and software interface are specified, data can be transferred to a local computer or farm management platform for review and reporting.
Technical Specifications
  • Applicable birds: Broilers, breeders or other poultry according to project requirements.
  • Weighing capacity and resolution: Available upon request.
  • Number of weighing positions: Customizable.
  • Platform or perch design: Selected for bird size and house layout.
  • Power supply and communication interface: Confirmed for the selected configuration.
  • Environmental protection and operating conditions: Designed according to local climate and farm conditions.
Applications Suitable for commercial broiler houses, breeder farms, poultry production complexes and farm modernization projects. Weight records can help managers review flock growth, assess uniformity and compare results between houses or production cycles.
Customization Options Options may include weighing point quantity and location, bird contact surface, mounting arrangement, cable routing, communication method and data reporting requirements. Integration with an existing farm management system should be assessed against its available interfaces before ordering.
Installation & Maintenance Position each weighing point where birds can approach naturally and where farm staff can inspect it safely. Secure supports to suitable poultry house framing, protect cables from birds and washdown activity, and install the controller in an accessible location. After installation, check platform clearance, perform calibration according to the supplied instructions and verify data transfer. Inspect mounting hardware, clean contact surfaces and recheck calibration during routine maintenance.
Product FAQ

Can the system connect to existing farm software?
Connection may be possible when the selected controller and the farm software have compatible interfaces. Please provide the software name and integration requirements for assessment.

How many weighing points are needed?
The quantity depends on house size, flock distribution and the level of sampling required. It is determined during project planning.

Is the system suitable for an existing poultry house?
Yes, subject to a review of available mounting locations, power supply, cable routes and network coverage.
Product Gallery

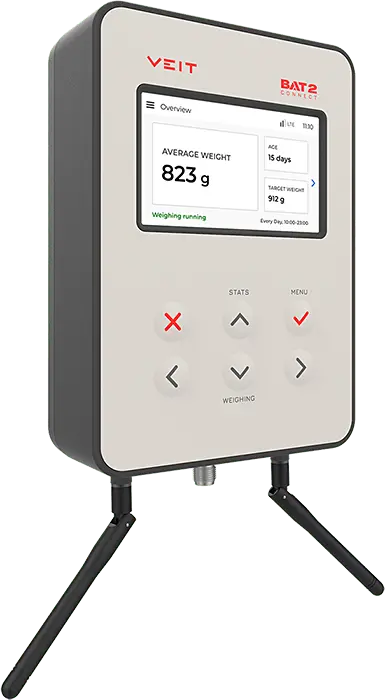

automatic poultry scale controller and weighing platform

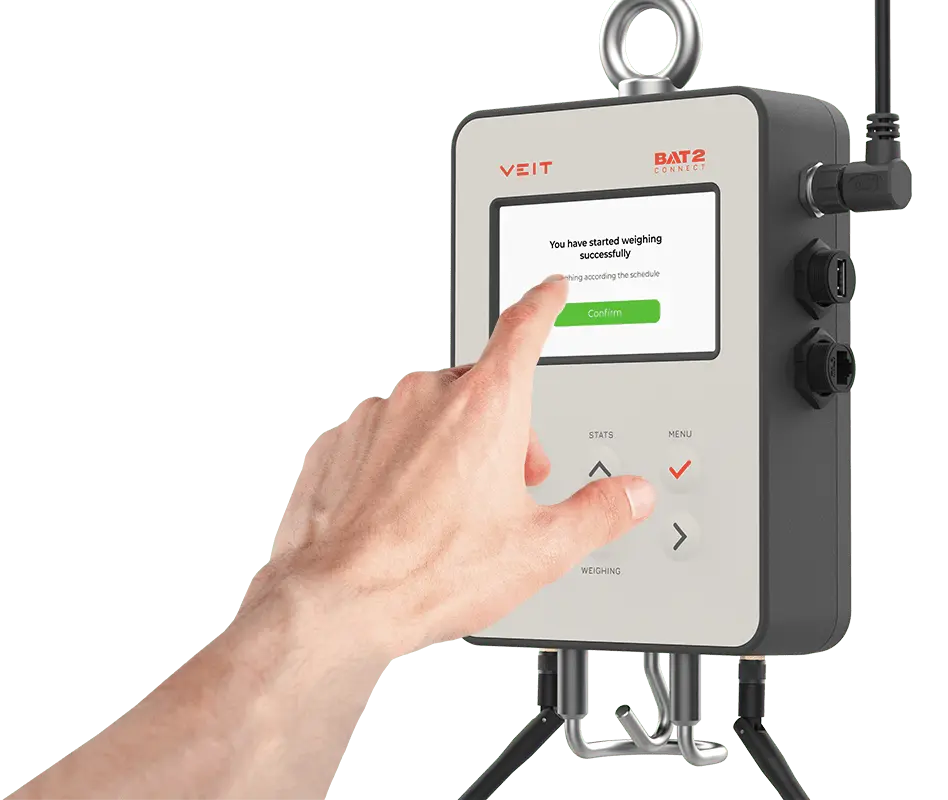

connected poultry weighing system data interface

poultry weighing system controller display

Comments & Inquiries

Leave your questions or requirements below. We will reply as soon as possible.

Related Products

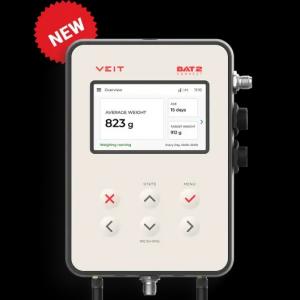

Connected Automatic Poultry Weighing System - SHEWUYOU Livestock Equipment
