| Product Showcase | Content | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name | Mobile Liquid Feed Mixing Cart | ||||||||||||

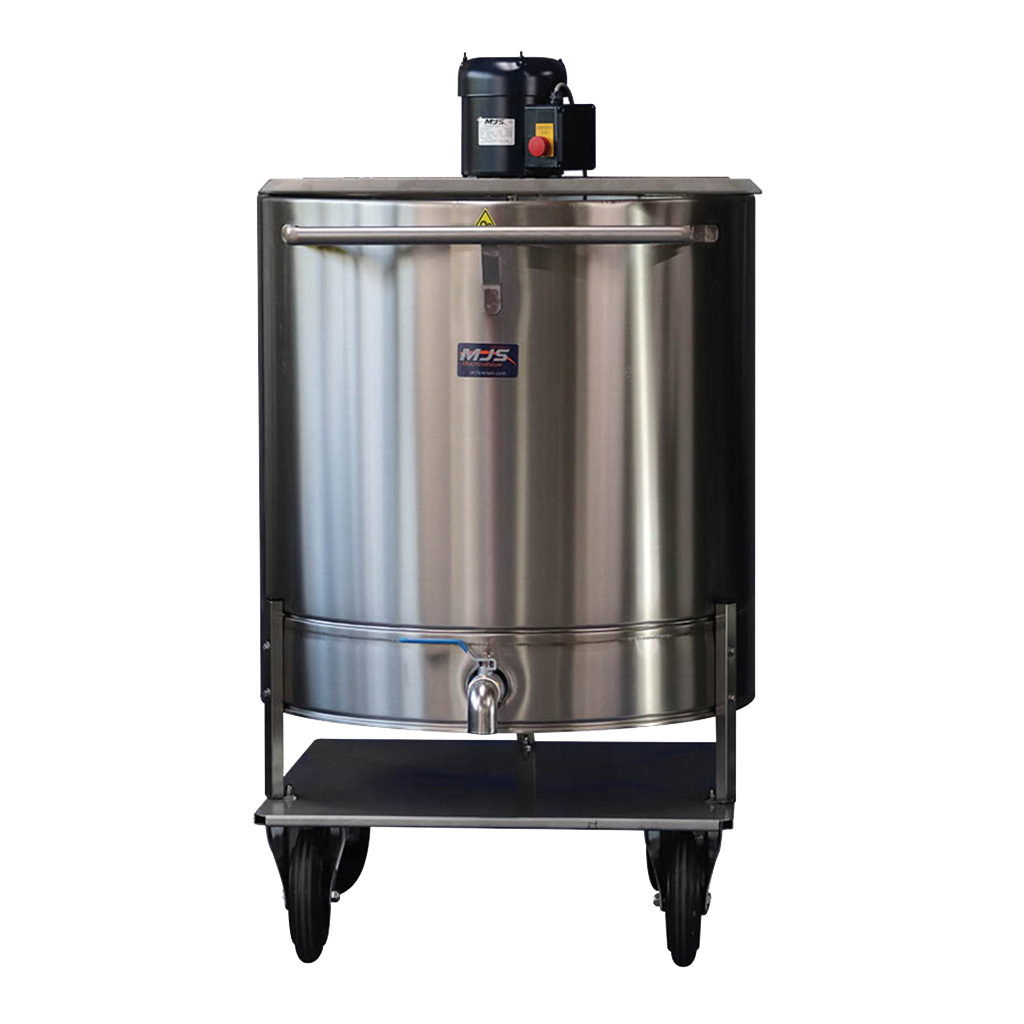

| Product Image |
 Reference product image; the final supplied configuration should be confirmed before publication. |
||||||||||||
| Product Overview | The Mobile Liquid Feed Mixing Cart brings batch preparation closer to the feeding area in commercial pig farms. A motor-driven top agitator mixes water with suitable powdered or wet feed ingredients in a wheeled tank, helping operators prepare a consistent ration for piglets. The cart can serve farrowing rooms, nursery units and other locations where flexible, small-batch preparation is preferred. Its configuration can be matched to aisle access, feeding practice and the electrical supply available on site. | ||||||||||||
| Key Features |
|
||||||||||||
| Structural Components | The typical assembly comprises a mixing tank, top-mounted motor and agitator, mobile support frame, wheels and operating handle. A suitable outlet, valve or dispensing arrangement can be specified for the intended ration and feeding method. Component access should allow operators to inspect the agitator and clean feed-contact surfaces after use. | ||||||||||||
| Working Principle | The operator adds the required liquid and compatible feed ingredients to the tank, then runs the agitator for the period required by the feed formulation. Once mixed, the ration can be moved to the feeding area and discharged through the specified outlet or transferred using compatible dispensing equipment. Mixing time and handling procedures should follow the feed supplier's instructions and the farm's hygiene protocol. | ||||||||||||
| Technical Specifications |
|
||||||||||||
| Applications | Suitable for preparing compatible liquid feed, milk-based rations and wet prestarter mixtures for piglets, subject to the feed formulation and equipment configuration. It can support targeted feeding in farrowing and nursery buildings, supplementary feeding programs, pilot feeding areas and farm projects where a fixed liquid feeding line is impractical. | ||||||||||||
| Customization Options | Tank volume, feed-contact material, agitator arrangement, chassis dimensions, wheel type, outlet position and electrical specification can be reviewed against the pig house layout. For new pig farm construction or steel structure building projects, confirm the finished floor, doorway and aisle dimensions, washdown practices and available power supply before finalizing the cart. | ||||||||||||
| Installation & Maintenance | The cart is supplied as mobile equipment rather than a permanently installed feeding line. Place it on a firm, level floor and connect it only to the specified electrical supply. Before each feeding round, inspect the power cable, agitator, wheels and outlet. After use, empty and clean all feed-contact parts in accordance with farm biosecurity procedures; follow the supplied manual for motor and electrical maintenance. | ||||||||||||
| Product FAQ |
Can it be used for piglet wet feed? Does it need a permanent feed pipeline? How is the correct size selected? |
||||||||||||

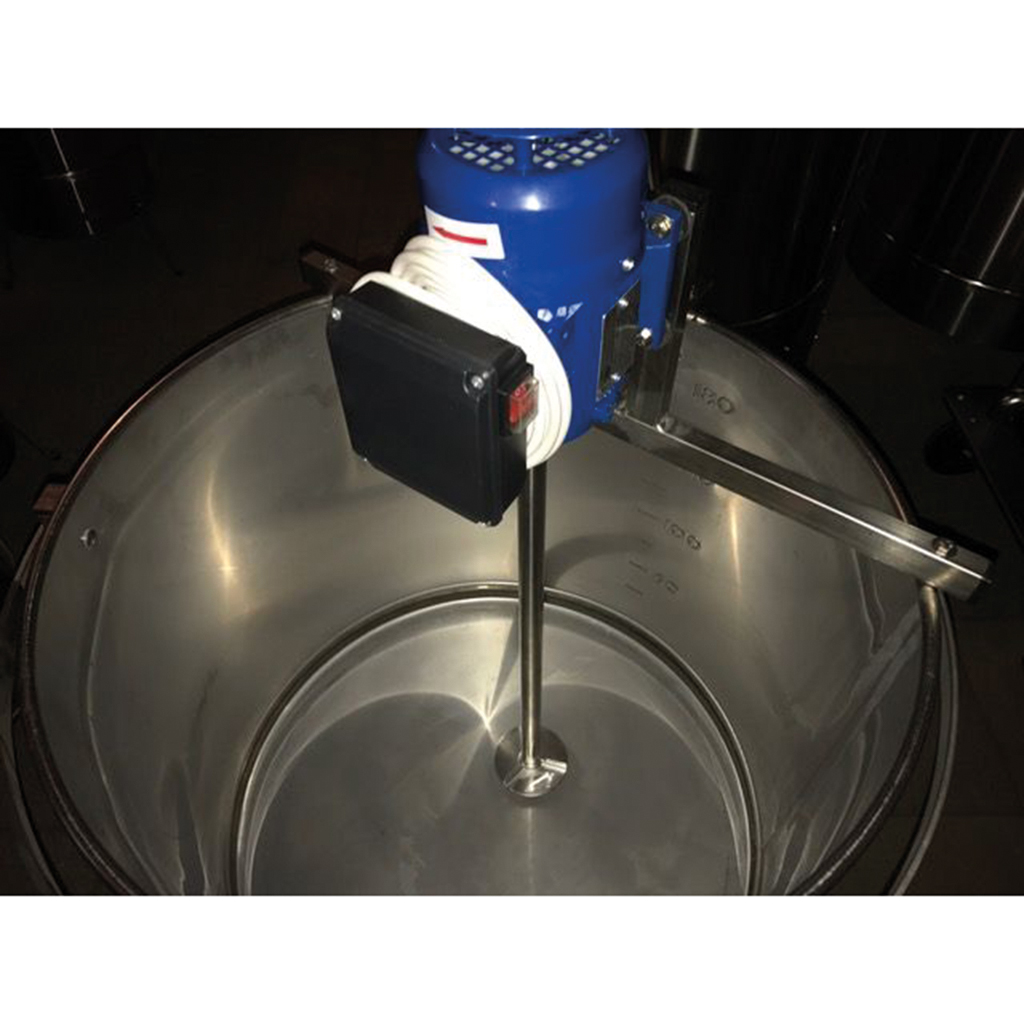

| Product Gallery |
  Reference images illustrate the product type; confirm image rights and the final SHEWUYOU configuration before publishing. |
