Product Showcase

Content

Product Name

Automatic Cow Brush

Product Image

Product Overview

The Automatic Cow Brush is a heavy-duty mechanical grooming unit designed to encourage natural scratching and self-grooming behavior in dairy cows and cattle.

A rotating brush with flexible mounting allows cows to groom their head, neck, back and other accessible areas without direct labor. The automatic drive system can activate when animals approach, helping provide on-demand grooming while avoiding unnecessary continuous operation.

The unit is suitable for modern dairy barns, free-stall housing, cattle facilities and commercial livestock projects where animal comfort, durable barn equipment and low-maintenance operation are priorities.

Key Features

Automatic rotating brush for self-grooming and animal enrichment.
Motion-activated operation helps reduce unnecessary energy consumption.
Large brush surface provides broad contact with the animal's body.
Flexible joint or mounting mechanism allows the brush to follow natural cow movement.
Soft yet durable bristles support effective grooming without unnecessarily harsh contact.
Heavy-duty construction is suitable for demanding commercial dairy environments.
Overload protection can help improve operational safety and equipment durability.
Low-maintenance mechanical design supports long-term farm use.
Suitable for indoor and selected outdoor livestock facilities according to the equipment configuration.

Structural Components

The Automatic Cow Brush generally consists of a cylindrical or contoured brush body, high-strength bristles, drive motor, gearbox, mounting arm, flexible joint, protective components and control system.

The brush body is typically manufactured from a durable polymer or composite material, while the mounting structure can be fabricated from corrosion-resistant steel or other farm-grade materials.

Depending on the selected configuration, the assembly may include a motion sensor, variable-speed control, overload protection and a hinged or movable mounting arrangement for convenient cleaning and service access.

Working Principle / Structural Principle

When a cow approaches the grooming station, the sensor detects the animal and activates the brush. The motor and gearbox rotate the brush while the cow rubs against the bristles.

The flexible mounting system allows controlled movement of the brush, helping the animal position itself naturally and reach different body areas. Depending on the design, an overload protection function can stop or reverse the brush when excessive resistance is detected.

Automatic activation and controlled movement provide an accessible grooming station while reducing the need for manual intervention. Similar commercial systems use motion or animal-activated operation, flexible joints and overload protection to combine cow comfort with equipment safety. :contentReference[oaicite:0]{index=0}

Technical Specifications

Product Type	Automatic rotating cow grooming brush
Primary Application	Dairy cows and cattle
Brush Type	Rotating, contoured brush; configuration customizable
Brush Material	Durable polymer or composite material according to project requirements
Drive System	Electric motor and gearbox
Activation	Automatic sensor activation; configuration according to control system
Power Supply	According to local electrical standards and project requirements
Safety Function	Overload protection; configuration available upon request
Installation	Wall, post, crossover beam or dedicated steel support according to site conditions
Dimensions	Customizable according to project requirements

Brush dimensions, motor rating, operating voltage, rotation speed and mounting height should be confirmed according to the final equipment configuration and local farm conditions. Commercial reference systems include 48-inch rotating brush configurations and multiple electrical options, but these figures are not treated as fixed specifications for this product. :contentReference[oaicite:1]{index=1}

Applications

Commercial dairy farms and large-scale cattle operations.
Free-stall dairy barns and loose housing systems.
Cow traffic lanes, crossover alleys and designated grooming areas.
Milking cow and heifer housing facilities.
New dairy barn construction and existing facility retrofit projects.
Animal welfare and cow-comfort improvement programs.
Livestock equipment distributors, farm contractors and agricultural project suppliers.
OEM and private-label livestock equipment programs.

The recommended installation location should provide sufficient clearance for cow movement, brush operation and safe escape routes. Cow brushes are commonly positioned at crossover areas or other accessible points within the barn. :contentReference[oaicite:2]{index=2}

Customization Options

The Automatic Cow Brush can be configured for different herd sizes, barn layouts and installation conditions. Custom options may include brush dimensions, bristle density, bristle stiffness, brush profile, motor configuration, rotation speed, overload sensitivity, sensor settings and mounting structure.

For dairy farm engineering projects, the support structure can be adapted to existing concrete columns, steel posts, crossover beams or purpose-built mounting frames. Electrical specifications can be selected according to local standards and site requirements.

OEM branding, product color, packaging and spare-brush supply programs are also available according to project requirements.

Installation & Maintenance

Installation should be carried out on a structurally sound wall, post, crossover beam or dedicated steel support capable of withstanding repeated animal contact and dynamic loads.

Select a location with adequate clearance around the brush and without interference from gates, partitions, feeders or high-traffic entrances. The final mounting height should be adjusted according to animal size and brush geometry.

Before commissioning, check the mounting bolts, electrical connections, gearbox, shaft, flexible joint and safety functions. Periodically inspect the bristles and moving components for wear, contamination or damage.

Keep the grooming area clean and replace worn brush elements when required. Maintenance intervals should be determined according to operating frequency, herd size and local barn conditions.

Product FAQ

Q: What is an automatic cow brush?
A: It is a powered grooming device that allows cows to scratch and groom themselves with a rotating brush, reducing the need for manual grooming.

Q: How does the brush start automatically?
A: A motion or proximity sensor can detect an approaching animal and activate the brush. The exact sensor and control logic depend on the selected configuration.

Q: Where should a cow brush be installed?
A: Common locations include crossover alleys, suitable barn posts and other accessible grooming points where cows have sufficient space to approach, use and leave the brush safely. :contentReference[oaicite:3]{index=3}

Q: Can it be installed in an existing dairy barn?
A: Yes. The mounting structure can be adapted to existing structural posts, walls or steel support frames according to the site conditions.

Q: Is the brush suitable for beef cattle?
A: A suitable heavy-duty configuration can be used for cattle, including beef animals, provided the brush size, mounting structure and safety settings are matched to the animals. :contentReference[oaicite:4]{index=4}

Q: Can the Automatic Cow Brush be customized?
A: Yes. Brush size, bristle characteristics, mounting design, electrical configuration, control settings, color and packaging can be customized according to project requirements.

Product Gallery

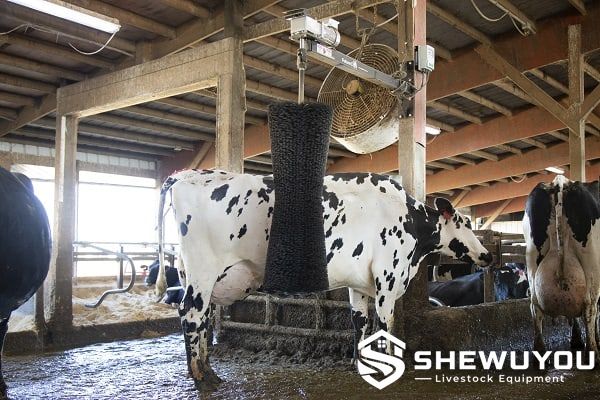

Automatic rotating cow brush installed in dairy barn

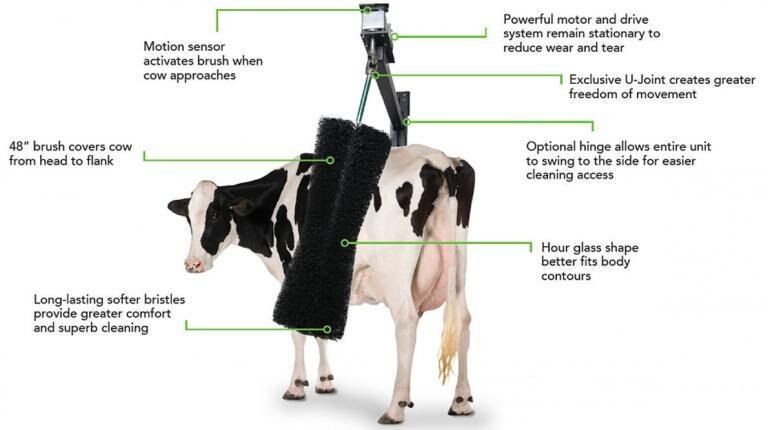

Automatic cow brush with motion sensor and flexible mounting

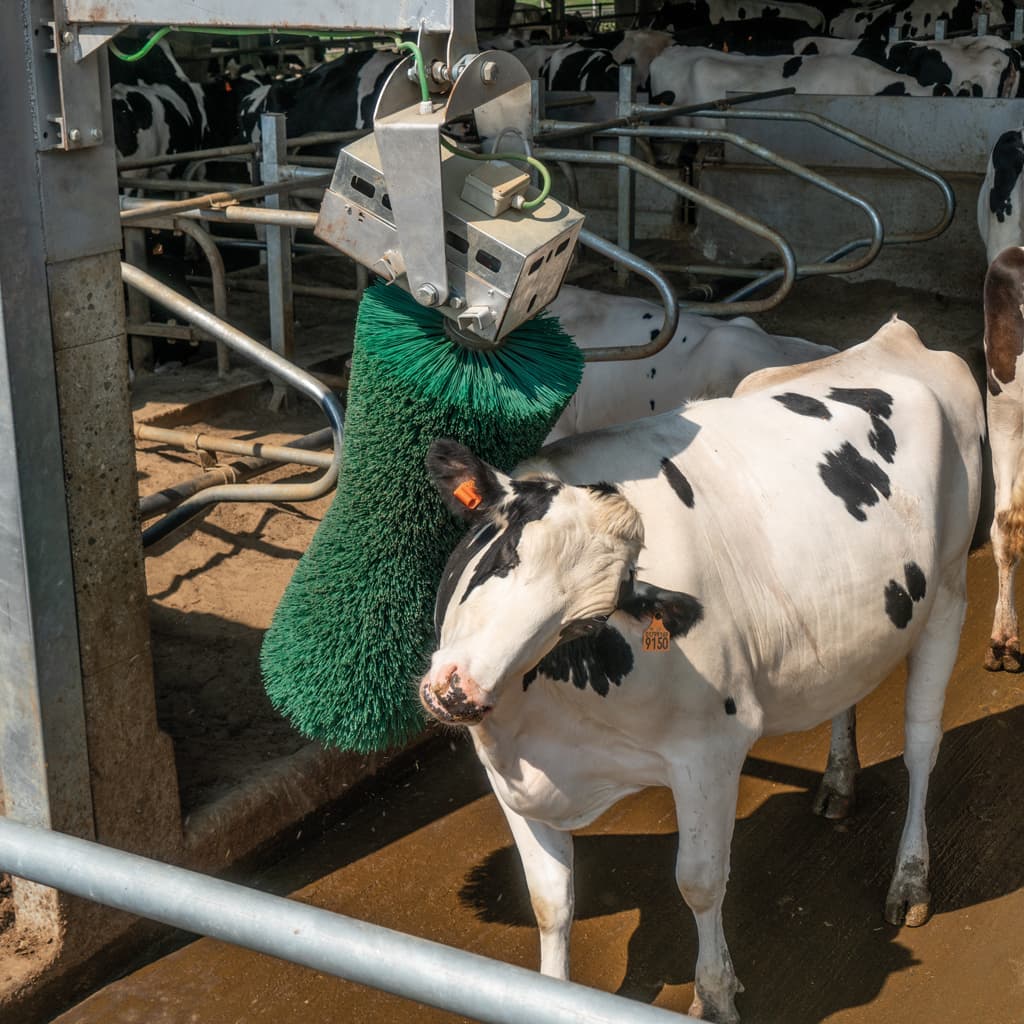

Rotating cattle grooming brush in commercial dairy facility

Automatic Cow Brush

Automatic Cow Brush
